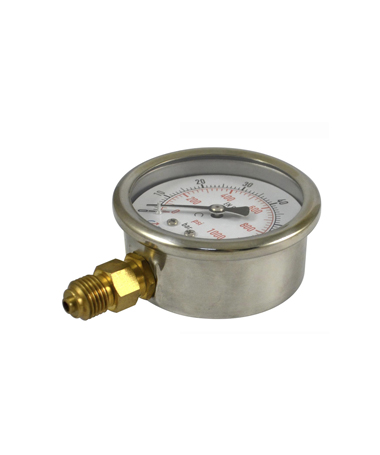

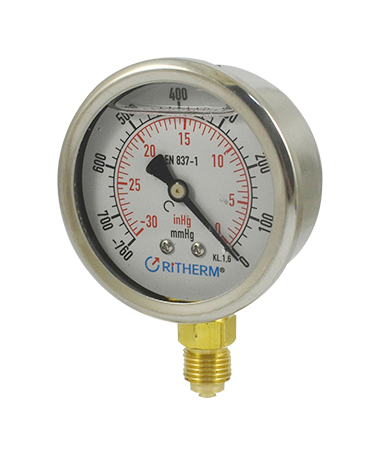

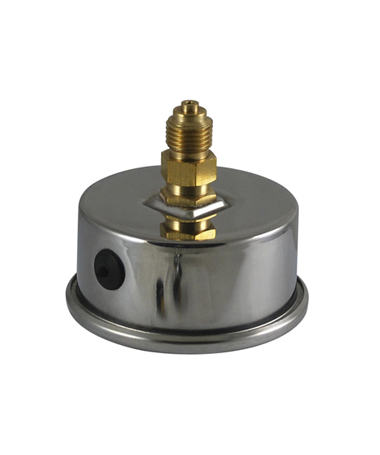

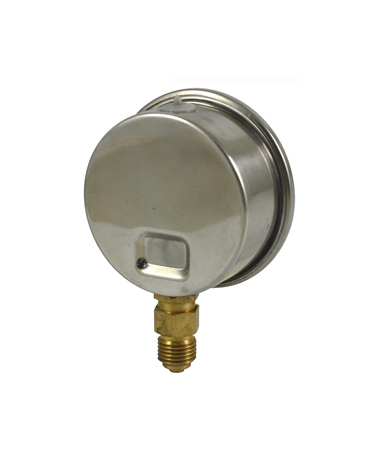

1200 LIQUID FILLED PRESSURE GAUGE

SpecificationParameters
Regular Specification1.5",2",2.5",4"
Connection Thread1.5 ",connector thread 1/8
2",2.5", connector thread 1/4
4", connector thread 1/2
Pressure Range-1-0，0-400 bar
Pressure range of compound
-1-24 bar
Environmental temperature-40-60℃
Material304 Stainless steel case and crimped ring, polycarbonate window. Copper bourdon tube and connection, brass movement,
Standard of joint threadNPT or BSP
Liquid filled mediumGlycerin or silicone oil
